water technologies

HYDRO:BOX

The highest flow and easy maintenance reverse osmosis system

SELECTION TOP MUSTN’T BE DISCUSSED

Hydrobox hasn’t got opponents. It’s not only a system, but also a selection that you can configure depending on user requests. Adding membranes, a pressure tank or a tank with delivery pump are just some of available options that you can choice to build your own Hydrobox. Profine® Blue prefiltration is doubled to have the flow and the capacity that you need, power and reliability for every work load.

A lot of treated water without asking for a loan or equip yourself with a bulky industrial installations? This looks like wanting the moon, but it is summed up in Hydro:Box, a “box” for water designed to contain a large number of membrane that allows it to compete with traditional reverse osmosis systems designed for industry. All at low cost.

2. THE MAJOR SISTER OF “EASY” LINE:
The largest “Easy” that doesn’t feel its dimensions. Also Hydro:Box, as Easy:Wash, is equipped with wheels. Four main elements that allow it to be easy to handle despite its considerable size. And not only, Hydro:Box knows how to be very firm especially during processing, simply blocking the four wheels.

3. SO MUCH FORCE AS YOU WANT:
This means that you can have many membranes as you want (up to 7). With Hydro:Box, in fact, you can decide to push yourself to the highest levels of output osmotic water. Therefore Hydro:Box can be used in situations where the flow rate and the reserve of accumulated water are essential to meet high demands.

4 . MAXIMUM POWER:
The high amount of supplied osmotic water is synonymous with quality. Osmosis membranes are, in fact, combined with a Profine® cartridge double filtration system, that is also produced by Think:Water. A tip that gives Hydro:Box the power required to increase the autonomy and the flow rate of supplied water.

TECHNICAL SHEET

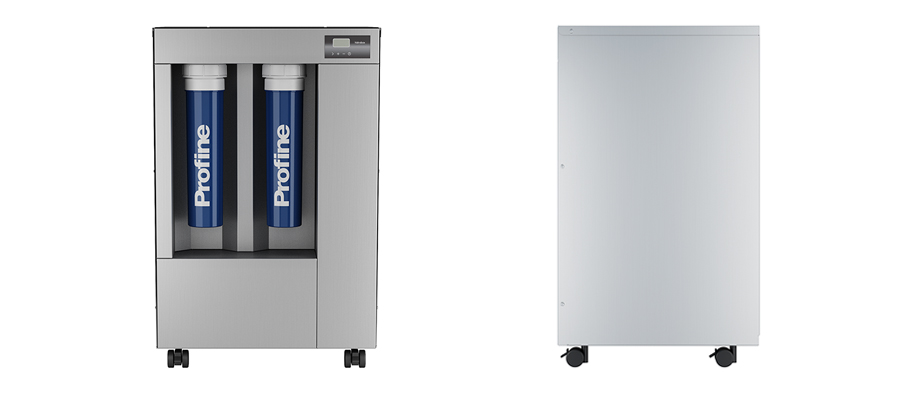

HYDRO:BOX
The highest flow and easy maintenance reverse osmosis system with pressure storage tank (24 l) inside outlet water pressure from 0,5 to 3 bar, (also to 7 membranes), wheels with brake.
Applications
Every industrial and professional applications Ho.Re.Ca., pharmaceutical, cosmetic, food industry, chemical, analysis. Dish/glass washers with pressure boiler ( without rinse pump). Max consumption 6 l each 2 minutes.
Electronic control
Inner perfiltration Profine®
flow rate of 240 l/h at 15°C
flow rate of 160 l/h at 15°C 3 bar back pressure
230V 50Hz
Connections
in 3/4”M – BSP out 3/4”M – BSP
Drain
8 mm quick fitting
Permeate auxiliary
10 mm quick fitting
Dimensions
488 x 442 x 748 mm
 ce


HYDROBOX pressure tank SPECIFICATIONS

Width x Depth x Height (mm)
(escluso attacchi)
488x442x748
Weight (kg) 50
Approved Decibel Level under normal operating conditions (dB (A)) <70
Membranes (no. 4) TWG1A1
Carbon filter (internal) (no.2) PROFINE® BLUE medium

WATER SUPPLY SPECIFICATIONS

Water type Potable
Maximum hardness (°F) 30
Maximum temperature (°C) 30
Minimum inlet flow rate (l/h) 800
Maximum inlet pressure (bar) 6
Minimum inlet pressure (bar) 1

POWER SUPPLY SPECIFICATIONS

Power supply type MONOPHASE + GROUND
Voltage (V) 230
Frequency (Hz) 50
Adsorbed current (A) 4
Power (W) 550
Fuse type electronic board F8A
Fuse type electric connector F8A

PERMEATE WATER SPECIFICATIONS

Maximum capacity at 15°C (l/h) 240
Flow with pressure at 3 bar, 15°C (l/h) 180
Recovery (%) 40

CAPACITY AND SUBSTITUTION FREQUENCY

No. 2 Carbon filters PROFINE® BLUE medium (l) 30.000
R/O Membranes UPON CLOGGING
Vane pump and solenoid valve 2000 hours

ENVIRONMENT SPECIFICATIONS

Maximum relative humidity (%) 90
Minimum external temperature (°C) 3
Maximum external temperature (°C) 40
