IT NEVER STOPS!
Osmo Maxi comes from Think:Water experience to never stop! Provided with a water-cooled engine, it makes reliability its own main characteristic. It’s “maxi” in performances too. With its 120 l/h, it guarantees water quality for all time that you need and from first to last litre. Profine® Blue external prefiltration is provided and included in offer.
1. PERSPECTIVE: VERTICAL.

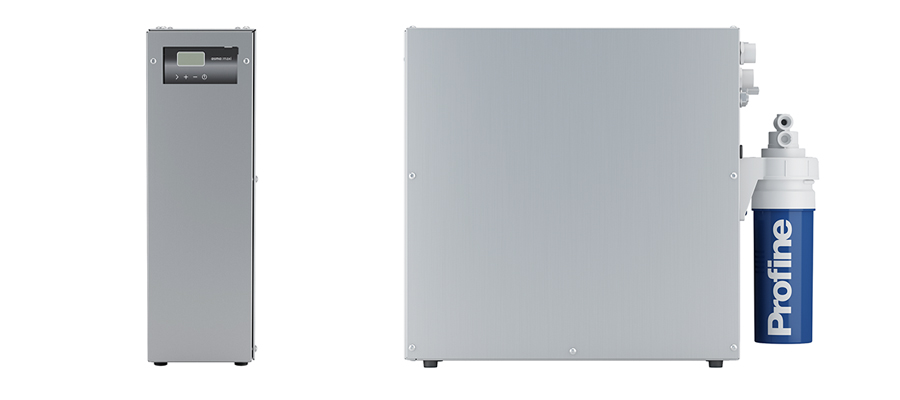

It has steel aisi 304 cabin cruiser, it is installed preferably in vertical position but also in horizontal one if you need it, access to hydraulic and electrical circuit is totally, thanks to an easy removal of lateral panel.
2. CONCEPT: STAKHANOVITE.
Flow rate of 120 l/h at 15°C, recovery of 40% and typical rejection of 95% without necessity of rest. Robust and reliable, it works continuously.
3. AIM: UNIVERSAL!
The essentiality of the project, the constructive versatility and the innovative cooling system make Osmo:Maxi suitable for all industrial applications, with no restrictions. Maintenance costs are reduced to minimum.
4. ELECTRONICS: INFORMATION IS ALL.
You can read on display the residual conductiviting value, the residual filter autonomy and operation hours of system. Alarm signals of lack of pressure from network, used-up filter and anti-overflowing. Accessing at configuration menu is easy.
Reverse osmosis system high flow for high workload.
Every industrial and professional applications Ho.Re.Ca., pharmaceutical, cosmetic, food industry, chemical, analysis. Dish/glass washers with atmospheric boiler and rinse pump. Max consumation 4 l each 2 minutes.
External perfiltration Profine®
flow rate of 120 l/h at 15°C
in 3/4”M – BSP
out 3/4”M – BSP
1/4“ quick fitting
143 x 450 x 456 mm
OSMO:MAXI standard SPECIFICATIONS
|Width x Depth x Height (mm)
|Approved Decibel Level under normal operating conditions (dB (A))||<70|
|Membranes (no. 2)||TWG1A1|
|Carbon filter (external)||PROFINE® BLU small (recomended)|
WATER SUPPLY SPECIFICATIONS
|Maximum hardness (°F)||30|
|Maximum temperature (°C)||35|
|Minimum inlet flow rate (l/h)||400|
|Maximum inlet pressure (bar)||6|
|Minimum inlet pressure (bar)||1|
POWER SUPPLY SPECIFICATIONS
|Power supply type||MONOPHASE + GROUND|
|Adsorbed current (A)||1.4|
|Fuse type electronic board||T3.15|
PERMEATE WATER SPECIFICATIONS
|Maximum capacity at 15°C (l/h)||120|
CAPACITY AND SUBSTITUTION FREQUENCY
|Carbon filter PROFINE® BLUE small (l)||10.000|
|R/O Membranes||UPON CLOGGING|
|Vane pump and solenoid valve||2000 hours|
|Maximum relative humidity (%)||90|
|Minimum external temperature (°C)||3|
|Maximum external temperature (°C)||40|
