WHAT AN INDUSTRY YOU SPEAK ABOUT!
It’s versatile, efficient, industrial, performing. TWB is reverse osmosis system that you can adapt to every industrial requests. High rejection membranes, control electronics for high power loads, industrial conductivity meters and many more technical characteristics make TWB selection the unique cabined system that is adaptable to every application and work environment in pharmaceutical and industrial field.
1. INDUSTRIAL TARGET: Think Water Box is designed in every detail to meet the requirements of reliability and performance in industrial processes. Each component is the maximum level compared to its range, in particular:

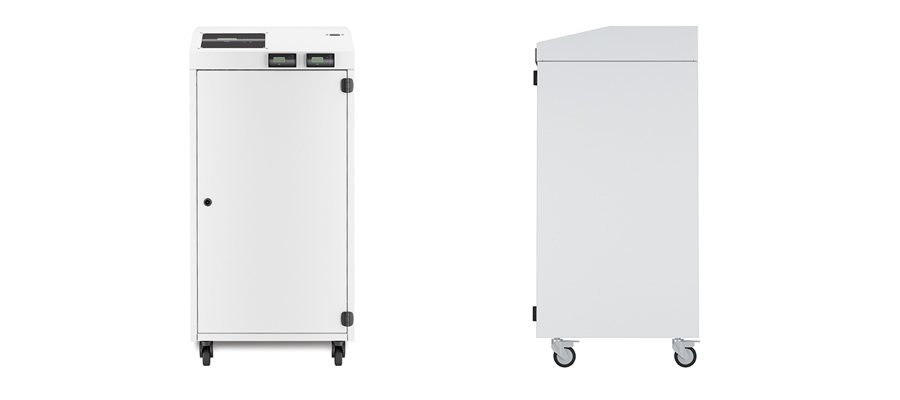

a. COATED BOX INSERTABLE IN EVERY ENVIRONMENT: the reverse osmosis system TWB is assembled in a cabin box made with painted steel and wheels with brakes.
b. ELECTRONICS AT THE TOP: TWB is serious and manages complex situations. TWB in fact is prepared for each type of use and by the large display you can maintain efficient membranes thanks to automatic flow of dosage against scales, the eventual filling of water tank and control the efficiency of the work performed thanks to the double conductivity probe and finally the possible alarm signal coming from the outside.
c. HIGH QUALITY PREFILTRATION: the choice of brand Profine® for prefiltration of water represents the highest quality and ease of maintenance. The Profine® cartridges, in fact, give a certain degree of filtration and are made in Italy, therefore they are installed on the machine thanks to a quick attack.
2. PREPARED TO ALL: it’s possible to equip the interior of TWB of: a water softener, a storage tank with multi-stage booster pump, metering pump, bottles with demi resin.
TECHNICAL SHEET
| TWB The high rejection reverse osmosis system coated box for finest water treatment in industrial and professional applications. |
|
| Applicazioni Every industrial and professional applications Ho.Re.Ca., pharmaceutical, cosmetic, food industry, chemical, analysis. |
|
| Flow rate from 100 to 400 l/h at 15°C depending on version. |
|
| 230V 50Hz | |
| Dimensions 565 x 546 x 1164 mm |
 |
TWB SPECIFICATIONS
| Width x Depth x Height (mm) (without fittings) |
565x546x1164 |
| Weight (kg) | 80 |
| Approved Decibel Level under normal operating conditions (dB (A)) | <70 |
| Carbon filter (internal) | Carbon Block 10” |
| Sediment cartridge (internal) | 10” PP 5µm |
WATER SUPPLY SPECIFICATIONS |
|
| Water type | Potable |
| Maximum hardness (°F) | 30 |
| Maximum temperature (°C) | 30 |
| Minimum inlet flow rate (l/h) | 1000 |
| Maximum inlet pressure (bar) | 6 |
| Minimum inlet pressure (bar) | 1 |
POWER SUPPLY SPECIFICATIONS |
|
| Power supply type | MONOPHASE + GROUND |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Adsorbed current (A) | 5 |
| Power (W) | 550W (TWB 150/300) 750W (TWB 450/600) |
| Fuse type electronic board | F8A |
PERMEATE WATER SPECIFICATIONS |
|
| Maximum capacity at 15°C (l/h) | 100 – 400 |
| Recovery (%) | 40 |
CAPACITY AND SUBSTITUTION FREQUENCY |
|
| Filter with active carbon (l) | 3 months |
| Sediment filter | 3 months |
| R/O Membranes | UPON CLOGGING |
| Vane pump and solenoid valve | 2000 hours |
ENVIRONMENT SPECIFICATIONS |
|
| Maximum relative humidity (%) | 90 |
| Minimum external temperature (°C) | 3 |
| Maximum external temperature (°C) | 40 |
